Advanced Driver Assistance System (ADAS)
Real-Time Safety System for Two-Wheeler Collision Avoidance
Python
OpenCV
PyTorch
Linux
C++Project Gallery
Image Placeholder 1
Add your project image here
Image Placeholder 2
Add your project image here
Image Placeholder 3
Add your project image here
Image Placeholder 4
Add your project image here
Project Overview
A real-time safety system designed to enhance two-wheeler vehicle safety through intelligent collision avoidance capabilities. Built on the NVIDIA Jetson Nano edge computing platform, this system performs on-device object detection, distance estimation, and Time-To-Collision (TTC) calculations to provide timely visual alerts to riders, preventing potential accidents.
By deploying deep learning models directly on resource-constrained hardware, the system achieves low-latency processing without cloud dependency, making it ideal for real-time automotive safety applications.
Problem Statement
Two-wheelers face significantly higher accident rates compared to four-wheeled vehicles due to reduced visibility, lack of protective structure, and minimal safety systems. Traditional ADAS features are predominantly designed for cars, leaving motorcycles and scooters vulnerable. There is a critical need for affordable, real-time collision avoidance systems specifically tailored for two-wheelers that can operate reliably on compact, power-efficient hardware.
Technical Architecture
Perception Layer
Dual USB cameras (front and rear) capturing real-time video at 720p/30fps for comprehensive environmental awareness
Processing Core
NVIDIA Jetson Nano (4GB) executing optimized YOLO object detection, distance estimation, and TTC calculations in real-time
Alert System

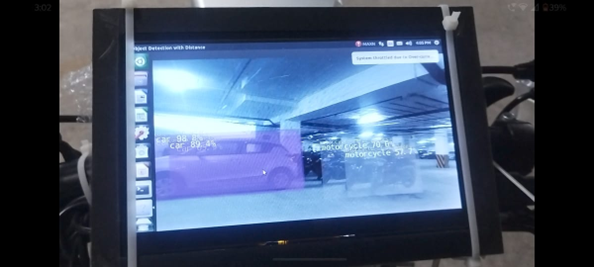

Visual display cluster with UART-based data transmission to external microcontrollers for collision warnings
Hardware Specifications

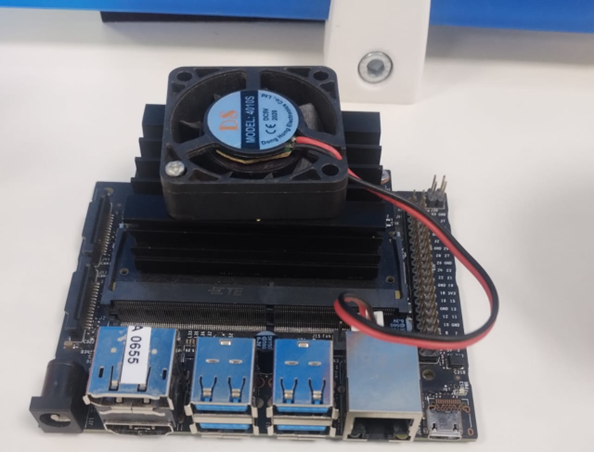

- āøNVIDIA Jetson Nano: 4GB RAM, 128 CUDA cores, quad-core ARM A57 @ 1.43 GHz
- āøStorage: 64GB microSD card for OS and model storage
- āøFront Camera: Logitech USB, 720p @ 30fps, 720mm focal length, f/1.8
- āøRear Camera: Logitech USB, 720p @ 30fps, 720mm focal length, f/1.8
- āøCommunication: UART for ESP32, XMC1400, IMX8 integration
- āøPower: 5V/4A supply with active thermal management
Software Stack
- āøJetPack SDK: CUDA, cuDNN, TensorRT for GPU acceleration
- āøPython 3: Primary language for inference pipeline
- āøYOLO: Custom-trained object detection for vehicles/pedestrians
- āøOpenCV: Image preprocessing, distance estimation, visualization
- āøTensorRT: Inference optimizer with FP16/INT8 quantization
- āøLabelImg: Dataset annotation for bounding boxes
Core Features & Capabilities
Real-Time Object Detection
Custom-trained YOLO model optimized for two-wheeler environments, detecting vehicles, pedestrians, motorcycles, and obstacles with high accuracy
Distance Calculation
Monocular vision techniques estimating distance using bounding box dimensions, camera calibration, and known object sizes
Time-To-Collision (TTC)
Physics-based calculations using relative velocity and acceleration: TTC = (-V + ā(VĀ² + 2aX)) / a
Dual-Camera System
360-degree awareness with front and rear cameras alerting riders to threats from all directions
Performance Specifications
Implementation Highlights
šÆ Model Training Pipeline

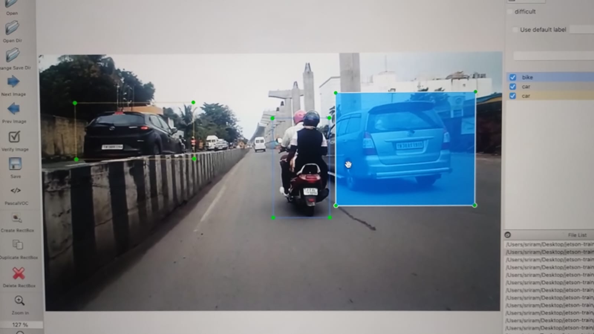

Captured diverse two-wheeler riding scenarios (highways, urban streets, traffic junctions) in MP4 format. Converted videos to image frames using custom Python scripts. Annotated objects using LabelImg to generate bounding box datasets. Trained YOLO model on high-performance GPU workstation, tuning hyperparameters for optimal detection accuracy based on mAP metrics.
ā” Edge Deployment Optimization

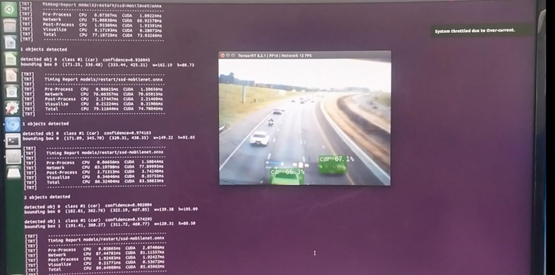

Converted trained PyTorch models to TensorRT format with FP16/INT8 quantization, reducing precision while maintaining accuracy. Applied layer fusion combining sequential operations to reduce memory transfers. Expanded Jetson Nano memory with swap files to accommodate larger models. Achieved 720p processing at 15-30 FPS by balancing detection accuracy with computational efficiency.
š Distance & TTC Computation
The system calculates object distance using the pinhole camera model:
TTC is computed by tracking distance changes across consecutive frames to derive relative velocity, applying physics-based formulas: TTC = (-V + ā(VĀ² + 2aX)) / a, where X is distance, V is relative velocity, and a is relative acceleration.
š Multi-Sensor Fusion Architecture
The system architecture supports integration with IMX8 processors for high-level decision making, XMC1400 microcontrollers for actuator control, ESP32 for wireless connectivity, and radar sensors for precise velocity measurements. All modules communicate via UART serial protocol, enabling modular architecture and fault tolerance.
Technical Challenges & Solutions
ā” Computational Resource Constraints
ā Deployed lightweight YOLO variants (YOLOv5n/YOLOv8n), optimized with TensorRT FP16 quantization, processed 720p instead of 1080p, and expanded memory with swap files
ā” Real-Time Performance Requirements
ā Utilized NVIDIA Jetson Inference SDK with TensorRT optimization, achieving <100ms inference times. Optimized Python code with NumPy vectorization and minimized CPU-GPU data transfers
ā” Accurate Distance Estimation
ā Trained on common vehicle dimensions with camera focal length calibration. Used bounding box stability filtering to reduce estimation jitter
ā” Power and Thermal Management
ā Implemented duty-cycle processing (analyzing every Nth frame) when load is high, designed thermal solutions with active cooling for sustained operation
ā” Environmental Variability
ā Selected cameras with wide aperture (f/1.8) for low-light sensitivity. Augmented training data with diverse lighting scenarios (night, rain, direct sunlight)
Project Deliverables & Status
Applications & Impact
Two-Wheeler Safety
Reduces collision risk for motorcycles and scooters through proactive warnings
Blind Spot Monitoring
Rear camera detects vehicles in blind spots during lane changes
Forward Collision Warning
Alerts riders to sudden braking or obstacles ahead
Pedestrian Detection
Identifies pedestrians at crosswalks and urban intersections
Fleet Management
Commercial delivery and taxi services deploy for driver safety monitoring
Edge AI Deployment
Demonstrates feasibility of real-time DL models on resource-constrained hardware
Future Enhancements
Project Impact
This ADAS project successfully demonstrates the feasibility of deploying sophisticated deep learning models on edge devices for real-time automotive safety applications. By optimizing YOLO object detection for the resource-constrained Jetson Nano platform and implementing distance estimation with visual alert systems, the project delivers a practical solution for enhancing two-wheeler safety. The modular architecture supporting multi-sensor fusion positions the system as a foundation for comprehensive next-generation vehicle safety systems.
Interested in This Project?
This project showcases edge AI deployment, real-time computer vision, and automotive safety systems. Feel free to reach out for technical discussions or collaboration opportunities.
